Artifacts Multi UV Branching on GPU

Question

Problem

I'm currently working on multi UV support for glTF-models, and after getting a first version up and running (checking against glTF's multi-uv-test) I checked if the other models are still running fine.

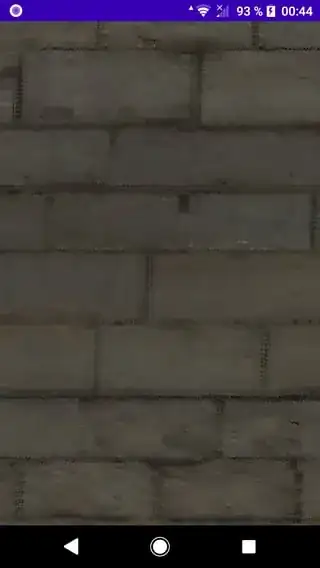

I noticed some very visible artifacts (left image) for the Sponza model which has only one set of texture coordinates.

I could at least find the code that seems to cause this issue in a fragment shader (the condition should always be true for Sponza):

vec2 getBaseColorTexCoords() {
    return u_material.baseColorTexCoordSet == 0 ? o_texCoords0 : o_texCoords1;
//    return o_texCoords0;
}

When I return the second line instead, I get the desired output (right image).

Some additional stuff:

• If I change the condition to true it works fine. I guess the branching is just optimized away in that case
• If I change the condition to false I get a black screen (texCoords1 attribute disabled for Sponza)
• If I pass o_texCoords0 on both sides of the colon : I still get these artifacts, but not if I just return o_texCoords0 in analogous functions for other texture maps (eg. normal or metallic-roughness)

The only place where I use this function:

vec4 getBaseColor() {
    vec4 baseColor = u_material.baseColor;
    if(u_hasBaseColorTexture) {
        vec2 texCoords = getBaseColorTexCoords();
        baseColor *= srgbToLinear4fv(texture(u_baseColorTexture, texCoords));
    }
    if(u_hasVertexColors) {
        baseColor *= o_color;
    }
    return baseColor;
}

Analogous functions:

vec2 getMetallicRoughnessTexCoords() {
    return u_material.metallicRoughnessTexCoordSet == 0 ? o_texCoords0 : o_texCoords1;
//    return o_texCoords0;
}
vec2 getNormalTexCoords() {
    return u_material.normalTexCoordSet == 0 ? o_texCoords0 : o_texCoords1;
//    return o_texCoords0;
}

Additional Code Snippets

First I suspected that perhaps u_material.baseColorTexCoordSet somehow somewhere gets assigned a value that is not equal to 0 on the CPU side. But that is not the case and to make doubly sure I'm passing in the constant 0:

val baseColorTexCoordSetLoc = glGetUniformLocation(shaderProgram, "u_material.baseColorTexCoordSet")
// glUniform1i(baseColorTexCoordSetLoc, material.baseColorTexCoordSet)
glUniform1i(baseColorTexCoordSetLoc, 0)

I don't think it is the cause, but here are some code snippets related to o_texCoords1, which gets its value from a disabled vertex attribute:

GPU:

// Vertex shader
layout (location = 1) in vec2 texCoords0;
layout (location = 2) in vec2 texCoords1;
out vec2 o_texCoords0;
out vec2 o_texCoords1;
// Inside main()...
o_texCoords0 = texCoords0;
o_texCoords1 = texCoords1;
// Fragment shader
in vec2 o_texCoords0;
in vec2 o_texCoords1;

CPU:

if(primitives.texCoords0.isNotEmpty()) {
    glEnableVertexAttribArray(1)
    glVertexAttribPointer(1, 2, GL_FLOAT, false, 0, offset)
    offset += primitives.texCoords0.size * Float.SIZE_BYTES
}
// This is empty for the Sponza model
if(primitives.texCoords1.isNotEmpty()) {
    glEnableVertexAttribArray(2)
    glVertexAttribPointer(2, 2, GL_FLOAT, false, 0, offset)
    offset += primitives.texCoords1.size * Float.SIZE_BYTES
}

"Question"

Currently I'm suspecting that this is some GPU branching issue.

I guess this might be difficult to answer, but any clues or hints on how to best tackle this problem are welcomed.

Edit

Changing the precision to highp float helps resolve the issue (not sure why), though that's not desirable on mobile.

Edit 2

I've decided to replace my uniform branches with preprocessor directives:

vec2 getBaseColorTexCoords() {
    vec2 texCoords;
#ifdef BASE_COLOR_TEX_COORD_SET_0
    texCoords = o_texCoords0;
#else
    texCoords = o_texCoords1;
#endif
return texCoords;

}

Cons: more cumbersome to maintain (perhaps also program switches, but I haven't benchmarked yet and it seems to run just fine)

Pros: no artifacts, don't have to use highp precision, recommended by Mali:

Use #defines at compile time in OpenGL ES, and specialization constants in Vulkan for all control flow. Doing so allows the compilation to completely remove unused code blocks and statically unroll loops.

So I'll roll with this for now.
