Why is it that the choice of polynomial for 6-nodes rectangular element(linear in sides 1 and 3, quadratic in sides 2 and 4) in FEM does not follow normal pascal triangle regular arrangement? i.e $u=c_1+c_2x+c_3y+c_4xy+c_5xy^2+c_6x^2y$ .
Asked
Active
Viewed 327 times
-1
-
2Welcome to MSE. For some basic information about writing mathematics at this site see, e.g., basic help on mathjax notation, mathjax tutorial and quick reference, main meta site math tutorial and equation editing how-to. – José Carlos Santos Sep 05 '18 at 10:37
1 Answers
0

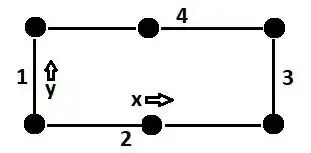

See above picture: there are only (linear) line segments in vertical direction.
And because of the three nodal points, there are two quadratic elements in horizontal direction. A reference for the latter:
Therefore the interpolation must be linear in $\,y\,$ and quadratic in $\,x\,$. According to a Cartesian product: $$ (1,y) \times (1,x,x^2) = (1,x,x^2,y,yx,yx^2) $$ Mind that your term with $y^2$ is absent now and two terms with $x^2$ are present. So the correct interpolation may be formulated as: $$ u=c_1+c_2x+c_3y+c_4xy+\color{red}{c_5x^2}+c_6x^2y $$
Han de Bruijn
