I have two hyperbolas, given in the form:

$$\tag{1}A_1x^2+2B_1xy+C_1y^2+2D_1x+2E_1y+F_1=0$$ $$\tag{2}A_2x^2+2B_2xy+C_2y^2+2D_2x+2E_2y+F_2=0$$

With $A_1=A_2=0$. I wish to attain all intersection points. I saw this example, but my representation is different. In addition, somehow this transformation does not seem to work for me.

Thanks!

AvidLearner
  • 386
  • There can be 2 real, one double or a single complex root & conjugate. – Narasimham Nov 09 '16 at 18:35
  • Are you looking for a general formula? Or do you have a specific problem? –  Nov 09 '16 at 18:42
  • 1
    @Narasimham, that doesn't sound quite right unless I'm misreading what you said. There can be 1 real solution (e.g. $xy + y^2 + x + y + 1 = 0$ and $-2xy + y^2 + x + y + 1 = 0$) or 3 real solutions (e.g. $xy + y^2 + x + y + 1 = 0$ and $2xy -12y^2-3x-31y+37=0$), etc. –  Nov 09 '16 at 18:59
  • @tilper I have a set of hyperbolas of this form ($A_i=0$), and I'm looking for a general formula to find all intersection points of any two hyperbolas in the set. – AvidLearner Nov 09 '16 at 18:59
  • In the last example you gave in the question you chose axes rotated hyperbolas without an $xy$ term, – Narasimham Nov 09 '16 at 19:28
  • @omerbp when considering double branches as distinct the number of roots can increase to 4, and minimum two real roots.. Can you upload the graphs? – Narasimham Nov 09 '16 at 19:36

2 Answers2

3

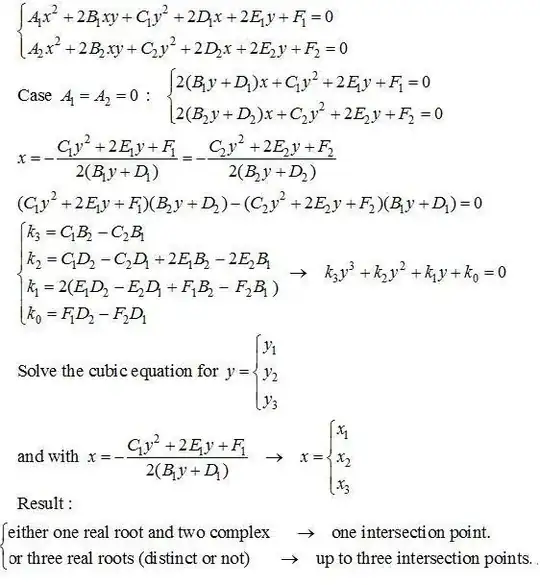

The case $A_1=A_2=0$ leads to a cubic equation. They are at least one or up to three intersection points :

enter image description here

The general case, valid not only for two hyperbolas but for two quadratic curves, leads to a quartic equation, so from zero up to four intersection points.

enter image description here

JJacquelin
  • 66,221
  • 3
  • 37
  • 87
0

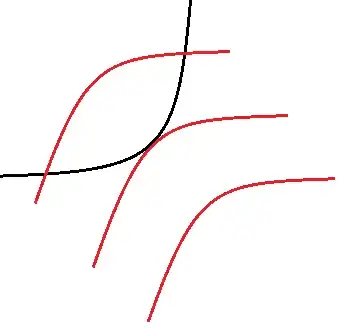

The solution is voluminous, found by Cramer's Rule solving for 2 unknowns from 2 equations. Roots are as quadratic equation depending on sign of quantity under the radical $$ (-2 B2^2 C1 D1 + 2 B1 B2 C2 D1 + A2 C1 C2 D1 - A1 C2^2 D1 + 2 B1 B2 C1 D2 - A2 C1^2 D2 - 2 B1^2 C2 D2 + A1 C1 C2 D2 + A2 B2 C1 E1 - 2 A2 B1 C2 E1 + A1 B2 C2 E1 + A2 B1 C1 E2 - 2 A1 B2 C1 E2 + A1 B1 C2 E2)/(-4 A2 B1 B2 C1 + 4 A1 B2^2 C1 + A2^2 C1^2 + 4 A2 B1^2 C2 - 4 A1 B1 B2 C2 - 2 A1 A2 C1 C2 + A1^2 C2^2) + ..... + \sqrt {...} $$ EDIT 1: Considering a single brach it may be like one of three situations:

Hyp ntrxn

But for two branches, there is a situation of double the number of roots/intersections as may be in a quadratic equation.

Narasimham
  • 40,495
