I'm reading a book on calculus, the part about vector fields on manifolds. It's a nice book, but with a severe drawback --- it has no pictures.

I like how vectors are treated algebraically, as derivatives over a local ring (ring of germs). But I still want to use "geometrical" view on vector fields.

The problem is I can't imagine vector field "multiplication" as a composition of derivatives. And thus I can't picture commutator of two vector fields.

Has anybody here got pictures too help me?

Yrogirg
  • 3,609

1 Answers1

17

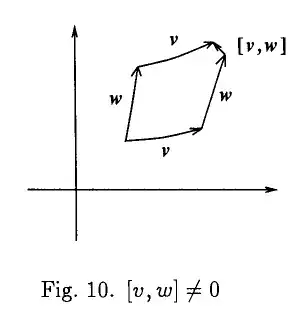

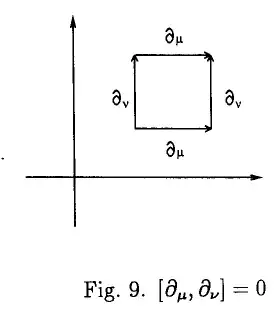

In Gauge fields, knots and gravity by J. Baez and J. P. Muniain authors got the following two pictures to visualize commutator:
enter image description here enter image description here

I hope it helps you.

qoqosz
  • 3,508
  • 19
  • 27
  • 5
    Nice find! It would help a bit if separately they'd also shown what the vector field $w$ and $v$ are like individually, so it is clear that the $w$ at the base of the $v$ and the $w$ at the head of the $v$ are not parallel. – Willie Wong Jun 26 '12 at 11:04
