New to quantum and ran into the block-encoding. Having a bit of trouble understanding $|0\rangle \otimes I$.

$|0\rangle$ is just a vector but $I$ is an $n$ by $n$ matrix? Not clear how vector can be tensorproducted with a matrix? I know I am missing something here.

Any help could be appreciated.

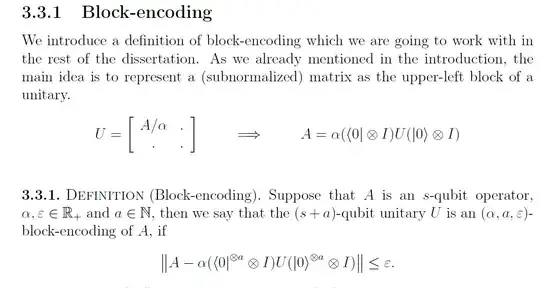

enter image description here

glS
  • 24,708
  • 5
  • 34
  • 108
John Parker
  • 1,081
  • 3
  • 11
  • You should treat $|v\rangle$ as a $m\times 1$ matrix, where $m$ is the dimension of the Hilbert space in which the vector lives. – Rammus Jun 30 '21 at 07:05
  • Could you add the reference to the paper where you copied the definition above about block encodings? – Jadzia Sep 02 '22 at 14:18

1 Answers1

2

This is probably best done with an example. Let's consider a $4\times 4$ matrix $U$ which acts on two qubits. The $|0\rangle\otimes I$ is equivalent to $$ \left(\begin{array}{c} 1 \\ 0 \end{array}\right)\otimes\left(\begin{array}{cc} 1 & 0 \\ 0 & 1 \end{array}\right)=\left(\begin{array}{cc} 1 & 0 \\ 0 & 1 \\ 0 & 0 \\ 0 & 0 \end{array}\right) $$ (if you don't know where this comes from, go back to the definition of the tensor product). This is a $4\times 2$ matrix, meaning it's the right size for you to pre-multiply by $U$. Similarly, $$ \langle 0|\otimes I\equiv \left(\begin{array}{cccc} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \end{array}\right) $$ so that, overall your matrix $A$ comes out as $2\times 2$ (it's the action of what happens to the second qubit if the first qubit starts and ends in state $|0\rangle$).

DaftWullie
  • 57,689
  • 3
  • 46
  • 124
  • Thank you. A follow-up question if you don't mind. I assume other elements in the 4x4 matrix are zero and U has the same rank as A? If so, how U can be a unitary? The paper says A doesn't need to be Unitary. – John Parker Jun 30 '21 at 12:07
  • No, I think you have to fill in the rest of the matrix $U$ so that it becomes unitary. – DaftWullie Jun 30 '21 at 12:19
  • You may want to look at: https://quantumcomputing.stackexchange.com/questions/5167/when-can-a-matrix-be-extended-into-a-unitary – DaftWullie Jun 30 '21 at 12:20
