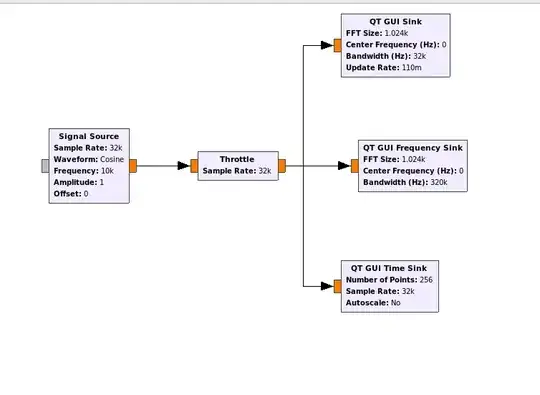

I create simple flow graph in gnuradio as below:

enter image description here

The expected output order is:

  • 1.qt gui sink
  • 2.frequency sink
  • 3.time sink

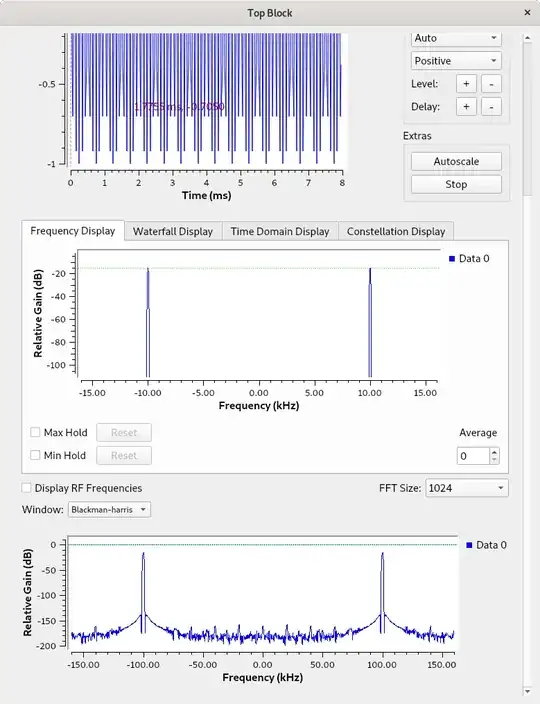

But time sink appear first,then gui sink:

enter image description here

How to change the display order of qt gui sink in gnuradio?

kittygirl
  • 610
  • 3
  • 11
  • I haven't run gnuradio in about 5 years... Could you check two things? From memory, I believe it is either that the order you create the elements matter or (much more likely) there is an attribute on the objects. I have a build job running, but it will take a long time to complete. If you can check this we can get a proper answer written. :) – David Hoelzer Sep 02 '21 at 22:35
  • @DavidHoelzer,I confirmed it's nothing to do with order you create the elements.Also, I didn't find place to set atrribute. – kittygirl Sep 02 '21 at 23:19
  • 3
    Ok. I am waiting for the build to complete. I know I've done this before. I should have an answer for you sometime tomorrow morning. :) – David Hoelzer Sep 02 '21 at 23:21

1 Answers1

2

All QT GUI elements support a GUI hint which dictates how they are laid out in a grid.

All of the QT GUI widgets and plots have a parameter called GUI Hint. This is used to arrange GUIs in the window, as well as assign them to tabs in a QT GUI Tab Widget.

enter image description here

The format is:

(row, column, row span, column span)

For example,

enter image description here

Phil Frost - W8II
  • 51,701
  • 6
  • 88
  • 212
  • Thanks Phil, you beat me to it. @kittygirl take note that you don't need to do this for every single element. If you are creating complex views on a tab widget, you can simply set this for the collection of controls (the tab widget) rather than having to do it for every single control displayed. As for me, I usually set the ones I care most about and evaluate if the autolayout "works" for the others before configuring every one of them. – David Hoelzer Sep 03 '21 at 13:15
