I have designed a LoRaWAN gateway and it is under testing. I have been using omnidirectional 3dBi dipole antenna FRP (Fibre-glass Epoxy Antenna) for 868 MHz.

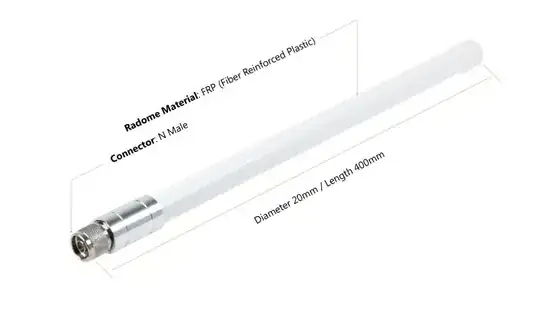

Below is the picture of my antenna (please ignore the specification in the picture): enter image description here

I want to know how to calculate height required for getting a particular range. What would be minimum and maximum height for my setup? And what factors limit the height of the LoRaWAN antenna?

I have been reading about Fresnel Zone and understand that any obstacle in the zone will limit the range and solution would be to increase the height of the antenna or the end node. However, since I don't have much knowledge with the antennas, I think i might be missing concepts like fresnel zone. Please help me.

EDIT

I came across another interesting concept. It limits the range of the LOS communication due to curvature of the earth. The link over here relates range to height of the antenna. According to the calculator presented in the website, I shouldn't go below 10 meter in height, to get atleast 10 km of the range.

abhiarora
  • 111
  • 5

1 Answers1

4

At VHF and above, communication is easiest when the stations have a clear line of sight. Without line of sight, a link is achieved only by reflection and diffraction off/around other objects in the environment, and this must be offset by higher transmit powers or antenna gain if there is insufficient margin in the link budget.

Estimating coverage in the absence of a clear line of sight requires some non-trivial modelling. I used to link to some tools using the Longley-Rice model, however I can no longer find any that are freely available.

However if you do have line of sight, then there are some simple calculations that can be done.

At long distances, Earth's curvature limits the line of sight distance. On flat terrain, the radio horizon describes the maximum distance for line-of-sight communication. It can be estimated by:

$$ \text{horizon in kilometers} = 4.12 \sqrt{\text{antenna height in meters}} $$

For example, an antenna mounted 2 meters high has a horizon of about 5.8 km. At 10 meters high, 13 km.

The horizons from each end add, so if one station has an antenna a 2 meters, and the other at 10, the maximum line of sight distance is approximately 18.8 km.

There is practically speaking no maximum height, so mount the antenna as high as you can.

Radio waves have a much longer wavelength than visible light and thus can't be focused to a tight beam like a laser pointer. Consequently, to minimize loss it's important not only to keep clear the direct line between the stations, but some area around that line as well. As a design rule of thumb, the area that "should be kept clear" is usually defined by the first Fresnel zone, which is the locus of points where a ray reflected off that point would arrive with a 180 degree phase delay compared to a direct ray. It's an ellipsoidal region between the antennas which is thickest in the middle, with a radius (in meters) of:

$$ 8.656 \sqrt{ \text{distance in km} \over \text{freq. in GHz}} $$

At 868 MHz and at your maximum range of 10 km, this gives the 1st Fresnel zone at its thickest point a radius of 29.3 meters, meaning you should hope to achieve a clear line of sight between the stations, and also clear the zone up to 29.3 meters around that line, especially in the middle.

Phil Frost - W8II
  • 51,701
  • 6
  • 88
  • 212
  • So, only two concepts (Fresnel and Horizon) are the deciding factors for the height? – abhiarora Oct 30 '18 at 12:54
  • According to Fresnel Zone, I should be moving the antenna to a height (29.3 meters + height of max obstacle)? – abhiarora Oct 30 '18 at 12:58
  • 1
    "At VHF and above, most communication is primarily by line of sight." Um, not at all? If that were true, you'd almost never have reception of WiFi, nor 2G/3G/4G/5G in cities. For microwave communications, the multipath channel is the standard model, and NLOS is a pretty common case for that. – Marcus Müller Oct 30 '18 at 22:31
  • @MarcusMüller fair point. edited. – Phil Frost - W8II Oct 30 '18 at 23:23
  • Thank you! Insta-Upvote :) – Marcus Müller Oct 31 '18 at 08:30
  • By the way, do these formulas take into account that if you go through the cost of finding/renting/building a tower, the antenna of your choice certainly won't be a 2dBi dipole, but more something that "looks down" (spending 5€ on an antenna after spending $N$ k€ on a mast...)? I'm always conflicted what to assume in such situation: financially/technologically, it makes no sense at all to use 3dBi antenna on a high mast (not like you want to communicate with aircraft), but regulatory, you can't just use a 30 dBi antenna with unreduced TX power in jurisdictions where EIRP is limiting factor. – Marcus Müller Oct 31 '18 at 08:34
  • @MarcusMüller I don't think there's anything wrong with a low gain antenna on a mast. If at the radio horizon your field intensity is high enough (and in many low-bandwidth applications it often is) then a taller mast will do a lot more to increase your range than antenna gain. – Phil Frost - W8II Oct 31 '18 at 13:09
  • sure, but if let's say 90% of the room angles that you illuminate are in directions you don't generally care about (directly below mast, anywhere above perpendicular to the mast top), then that's 10 dB of power you could have saved. – Marcus Müller Oct 31 '18 at 14:17
  • What good is saving 10 dB of power if your range is ultimately limited by the radio horizon? – Phil Frost - W8II Oct 31 '18 at 15:11
  • +10dB of battery life, for example, or loss of intereferer power if you use the same antenna for RX! – Marcus Müller Nov 01 '18 at 17:13
  • Battery life and interferer power don't really matter if you can't establish a link because the Earth is in the way. And maybe your devices aren't battery powered, and there's no significant interference. Not everything is a commercial cell phone network! – Phil Frost - W8II Nov 01 '18 at 17:19
