What impedance matching do I need between my 300Ω feedline and Softrock receiver?

Question

I will be assembling a Softrock Ensemble II HF receiver, and I know I'm going to want it on air as soon as I build it, so I'm challenging myself to build an antenna for it first.

The plan is to do a simple balanced line inverted V dipole, such as the $4 special, but my receiver has a BNC antenna connection.

The receiver schematic shows the antenna going into an ungrounded BNC connector, then connecting to a transformer which I'll be winding myself from the instructions. However I want to be able to connect all sorts of antennas so I don't want to alter the receiver just for this antenna.

Assuming the BNC isn't grounded, can I just attach a BNC to the 300Ω twinlead and that to the receiver, or should I attempt to do some amount of impedance matching between the twinlead and the receiver? I'm not transmitting, so it won't destroy anything to try, but I'd like to have decent reception.

Related / arguably duplicate: What is the relationship between SWR and receive performance? — Kevin Reid AG6YO, Dec 12 '13 at 20:32
@KevinReid Generally speaking it's relevant, and the answer may be hidden in there, but I can't discern the specific answer to my question here in the answers to that question. — Adam Davis, Dec 12 '13 at 20:45
You don't need any matching. Attach the twinlead directly to a BNC connector, attached directly to your receiver. Or, forget the BNC connector and solder the twinlead directly to the PCB. — Phil Frost - W8II, Dec 13 '13 at 20:52
@KevinReid Related yes, duplicate highly doubtful bordering on an outright no. It is only a duplicate if any answer that can apply to one question also applies to the other, in both directions. — user, Dec 14 '13 at 20:44

score 2 · Accepted Answer · answered Dec 14 '13 at 19:22

Assuming the BNC isn't grounded, can I just attach a BNC to the 300Ω twinlead and that to the receiver

Yes. Impedance matching will mean less losses between the antenna and your receiver, but the receiver's objective isn't energy harvesting. As long as the antenna is sensitive enough and the receiver's gain high enough that the predominant source of noise is RF noise, and not the receiver's internal noise, improving antenna efficiency will do nothing to help you.

In particular on the softrock kit, receiver gain is fixed. If you notice no difference between a dummy load and your antenna on a quiet frequency, try increasing the gain. Increase it just until the RF noise floor is just a bit above the receiver's and your sound card's noise floor: this will give you the highest dynamic range.

SDsolar · Answer 2 · 2017-10-09T17:59:53.643

Here is one answer on the topic:

Reviews Summary for Softrock Ensemble II Built Radio (eHam review)

Excerpt:

I only have a short, modest, "long wire" (maybe 30 feet) connected to a 9-1 balun (for 50 ohms input to radio), and getting excellent reception in Thunder Bay, Canada. I am really enjoying 20 meter SSB, as well as lots of shortwave broadcast stations!

Here is the most convenient method I have found for twinlead. These are very inexpensive.

No soldering required.

(For a long wire, connect the antenna to the right-hand spring connector as shown in this orientation, then a shorter stub to ground to the left-hand spring connector)

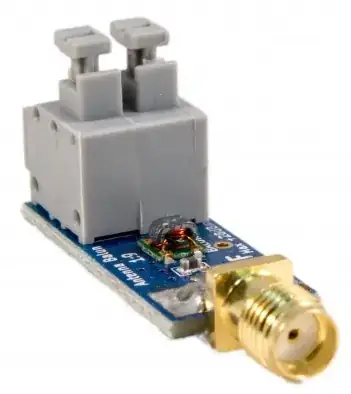

To connect to BNC there are adapters such as this available for a reasonable price:

The antenna itself (size, placement, etc) will determine what it brings in best.
