How to make my characters turn smoothy while walking on a path(list of coordinates)?

Question

I have a list with coordinates - output from A* algorithm - and I would like to make my characters smoothly follow this path with rotations.

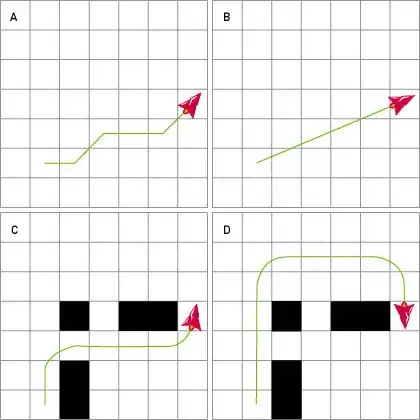

So I have something like A and I want to get C

enter image description here

How can I do this ?

EDIT

To make myself a little bit more clear:

I am more interested in smooth turning as I already know how to walk from one node to another.

EDIT

As many people find this useful (me too) I am posting link to Daniel Shiffman's "Nature of code" where he discusses a lot of game AI (and physics) problems e.g. steering behaviours http://natureofcode.com/book/chapter-6-autonomous-agents/#chapter06_section8

@Tom Well yes but I have my version implemented anyway. The point of this question is to get smooth turns(rotations) while walking on the path. — Patryk, Jan 03 '13 at 10:09
A nice term to Google in this regard is 'Steering Behavior' :) — Roy T., Jan 03 '13 at 10:15
@RoyT. Of course ! I have been reading this few weeks ago and already forgot :/ This is a great article on path following with awesome math + physics explanation natureofcode.com — Patryk, Jan 03 '13 at 10:20
I just wanted to thank @Patryk for the link - looks really informative, and I've been searching for a good resource on steering behaviour. — Christian, Jan 03 '13 at 12:47
@Patryk: I also enjoyed it, especially the part about flocking behavior, which might have sparked a small game idea. :) — Jonas Byström, Jan 10 '13 at 08:25

BlueRaja - Danny Pflughoeft · Answer 1 · 2013-01-10T00:43:11.660

As others have mentioned, for the second case you will need to implement some sort of spline or (actually a better fit for your example) give the unit some sort of steering behavior.

However, for the first case, there is a solution that is both simpler and gives better results than path smoothing. It's called Theta*, and is a simple (and relatively new) extension of A* on grids that allows units to move in any direction between grid-points.

Theta* vs. path smoothing

There is a nice article explaining Theta* (from which I stole the above image) here

score 7 · Accepted Answer · answered Jan 03 '13 at 14:37

If you want smooth paths in a tile-based environment, there's no way around applying some path-smoothing on your A* waypoints. In his book about programming game A.I., Matt Buckland describes a simple and fast algorithm to smooth a path (basically remove all edges that can be removed without causing an intersection with your obstacles).

Once you have remove unnecessary edges like this, your first case (A -> B) is solved. Smoothing out the edges in your graph could be accomplished in several ways. Most likely, Hermite splines would work (depending a bit on your obstacle density and tile-size). Another option could be steering behaviors, where you start to steer towards the next waypoint, as soon as you're half a tile away from the current target (this really depends on how fast your "agent" moves/turns).

score 2 · Answer 3 · edited May 26 '21 at 02:17

2

To a more human realistic movement, try integrating with SharpSteer, a C# version of the classic OpenSteer.

You get the output of A* (A star) and let the steering behavior care about the movement; one of the samples show exactly how to do this, navigate following a path.

edited May 26 '21 at 02:17

Pikalek

12,372
5
43
51

answered Jan 03 '13 at 16:59

Tpastor

363
1
5

score 2 · Answer 4 · answered Jan 10 '13 at 08:14

I've had good luck with Catmull-Rom splines (a type of cubic spline as also recommended by @bummzack). The good part about those is that the spline will always go through the control points, many others do not. Implement something like this:

t    = <time*>
t12  = t + 1.0
t23  = t
t34  = t - 1.0
t123 = (t + 1.0) / 2.0
t234 = t / 2

c1 = controlpoint[0];
c2 = controlpoint[1];
c3 = controlpoint[2];
c4 = controlpoint[3];

l12 = lerp(c1, c2, t12);
l23 = lerp(c2, c3, t23);
l34 = lerp(c3, c4, t34);
position = lerp(lerp(l12, l23, t123), lerp(l23, l34, t234), t);

*time is a value [0,1] between the control points 1 and 2.

score 1 · Answer 5 · answered Jan 08 '13 at 23:39

In case of navigation from point to point, I used the difference in angles (current player direction vs. direction from current point to next point) and then gradually changed the angle to final angle as the movement happens. Check this game here where the airplanes move from 1 point to another but the turn is not abrupt but on watching carefully one can identify the points of the path. (the game works only on mobile though preferably iPhone/iPad).

This is exactly what I ended up doing. – Patryk Jan 09 '13 at 08:22 — Patryk, Jan 09 '13 at 08:22

score 0 · Answer 6 · answered Jan 03 '13 at 11:17

A->B can be solved by using navigation meshes instead of a grid. This implies a big change in pathfinding data generation.

Cases like C and D are just corner cutting: if character is moving in a path and inside a "corner" (cell where previous, current, next cells are not on a straight line), push it in direction of both previous and next cell. The only problem is to determine the distance from real position (the pushing distance). That would probably require the distance from current cell as input. Something like this:

push_dir = average( prevcell.pos, nextcell.pos ) - curcell.pos;
push_dist = cell_half_width - distance( char.pos, curcell.pos );
char.pos += push_dir * push_dist;
