I'm particularly concerned with git, but I imagine this is a good place to use vc. I want to emulate Atom's git integration with its file explorer:

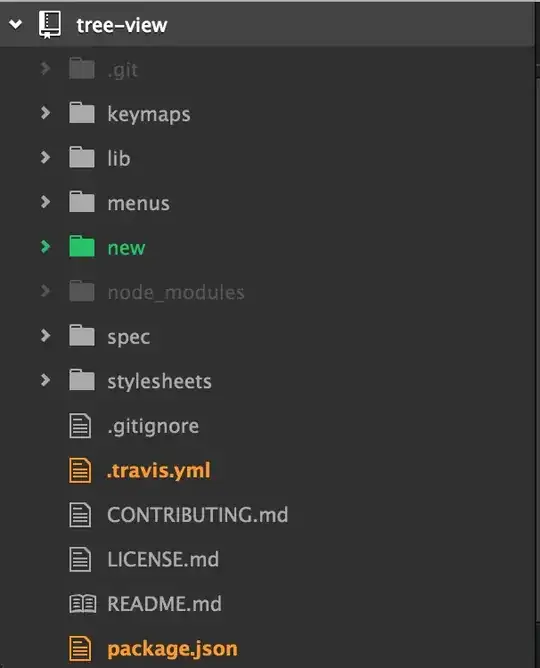

atom-git-integration

How can I get something like this in dired? I understand there are other tools for simulating a proper tree structure, but the normal i/RET workflow should work just fine.

Sean Allred
  • 6,921
  • 18
  • 86
  • Just to clarify (since I'm not familiar with Atom): Green would be untracked/new files. Dark Grey is files in .gitignore, light grey is up-to-date and orange is modified? – Jonathan Leech-Pepin Feb 23 '15 at 19:52
  • @JonathanLeech-Pepin That's what is pictured, but faces are easy enough to M-x customize :) – Sean Allred Feb 23 '15 at 19:53
  • @JonathanLeech-Pepin I don't use Atom myself so I don't know if even it does this, but it would really neat if dired knew when things had been deleted in the work tree. – Sean Allred Feb 23 '15 at 20:00
  • 1
    I'm guessing this will need to end up being a dired-vc package that adjusts the faces of the files. Google doesn't seem to come up with anything. -> dired-after-readin-hook looks like an entry point for it (each listing is narrowed to after reading). – Jonathan Leech-Pepin Feb 23 '15 at 20:04
  • @JonathanLeech-Pepin After a bit of play, I think the trick will be parsing out the actual file names from that listing. (Note that (buffer-string) is effectively the entire output of ls.) Could potentially use dired-get-filename. – Sean Allred Feb 23 '15 at 20:14
  • It's funny, the hook says it runs narrowed, but the .el file says run unnarrowed because you don't need to narrow. – Jonathan Leech-Pepin Feb 23 '15 at 20:23
  • @JonathanLeech-Pepin It will at any rate be narrowed to the current directory listing – might be useful when inserting directories. But then again, the ability to refresh the tree's status would be good – might have to be done all-together. – Sean Allred Feb 23 '15 at 20:25
  • Let us continue this discussion in chat. – Jonathan Leech-Pepin Feb 23 '15 at 20:26
  • 1
    A simple way is to use M-x vc-dir. It isn't quite the same as dired but it's pretty nice anyway. If you really want VC on dired, I think the only option is to write elisp to do it. Maybe not super hard since VC can already provide the information you need. – Tom Tromey Feb 24 '15 at 14:21
  • @TomTromey It doesn't seem that vc-dir will display unchanged files. While I apropos for a controlling variable, do you know if there is one? – Sean Allred Feb 24 '15 at 14:22
  • I looked but didn't immediately see one, sorry. – Tom Tromey Feb 24 '15 at 14:25
  • It looks like vc-dir.el:1282 is responsible for highlighting entries, but it looks like the function doesn't even get called. – Sean Allred Feb 24 '15 at 14:26
  • One could modify vc-dir.el:1110 to do this, but @TomTromey is right: there is no actual toggle. – Sean Allred Feb 24 '15 at 14:31
  • See also this pull request for Neotree. – Sean Allred Mar 23 '15 at 02:21

4 Answers4

9

You can install diff-hl from GNU ELPA and add the following to your init file:

(add-hook 'dired-mode-hook 'diff-hl-dired-mode)

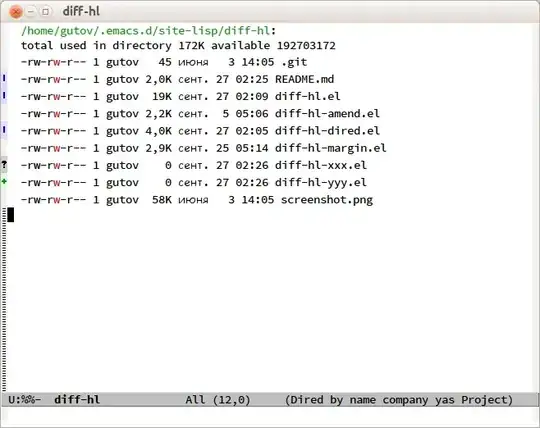

But it doesn't color the lines. Instead, it shows statuses in the fringe (or the margin, if diff-hl-margin-mode is on). Looks like this:

enter image description here

Dmitry
  • 3,578
  • 16
  • 20
  • Woah! Also, sorry! I checked back here almost by accident :) I'll give this a go today and see if it can be modified to suit my needs. In the event that I can get something working, would you mind if I edited the necessary patches into your answer so it can be complete? – Sean Allred Mar 21 '15 at 13:58
  • @SeanAllred Sure, as long as the added code uses the public functionality, and does not redefine any of the functions. In case you find you absolutely need that, better file a feature request. – Dmitry Mar 21 '15 at 17:58
  • Naturally :) Though I will note that 'public functionality' is difficult to determine in emacs lisp :) – Sean Allred Mar 21 '15 at 18:01
  • 1
    @SeanAllred Well, vars and hook in this case, I guess. :) – Dmitry Mar 21 '15 at 18:14
  • I'm accepting this because it answers the question I asked as written, but future readers should note the additional answer I provided for neotree's new support of this. – Sean Allred Apr 29 '15 at 16:26
2

Not actually dired-based, but it is closer to the Atom screenshot provided. As of PR#93, neotree can display VCS status as part of the listing:

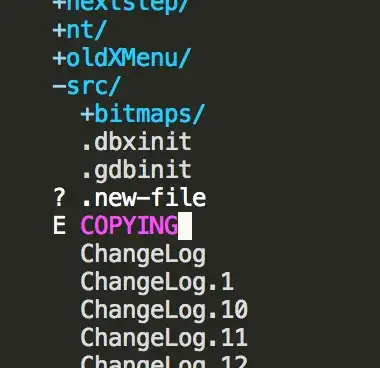

screenshot

Here is the configuration that would effect the screenshot above:

(setq neo-vc-integration '(char face))

The presence of char controls the ? and E that you see. The presence of face controls the highlighting.

Sean Allred
  • 6,921
  • 18
  • 86
2

This is an 'incomplete' set of elisp that will provide the feature set. Implementing a full list is left as an exercise (and/or as a full package to develop dired-vc (time-permitting)) for the reader.

Steps to complete the below with missing information:

  1. Obtain a list of all symbols returned by vc-state
  2. Define faces (defface) for each missing symbol
  3. Adjust the cond block to include all those symbols
(defun dired-fontify-vc ()
  (while (not (eobp))
    (let* ((inhibit-read-only t)
           (file (ignore-errors (file-name-nondirectory
                                 (dired-get-filename))))
           (state (ignore-errors (vc-state file))))
      (when (and file
                 state)
        ; (message "%s>%s" file state)
        (let ((beg (dired-move-to-filename))
              (end (dired-move-to-end-of-filename)))
          (cond
           ((eq state 'edited)
            (add-text-properties beg end '(font-lock-face edited-face)))
           ((eq state 'up-to-date)
            (add-text-properties beg end '(font-lock-face update-face)))))
        ))
    (dired-next-line 1)))

(add-hook 'dired-after-readin-hook 'dired-fontify-vc)

(defface edited-face
  '((t :foreground "orange"))
  "Foreground color for edited files")
(defface update-face
  '((t :foreground "white"))
  "Foreground color for up-to-date files.")
Jonathan Leech-Pepin
  • 4,357
  • 1
  • 20
  • 32
  • Two things: 1) This is a much slower solution, compared to what diff-hl-dired does (it uses the dir-status-files backend command), 2) this update-face is unreadable in the default theme. – Dmitry Jan 13 '16 at 00:32
0

Not dired but treemacs does this.

Treemacs is a package that you install via package.el or similar.

e.g.

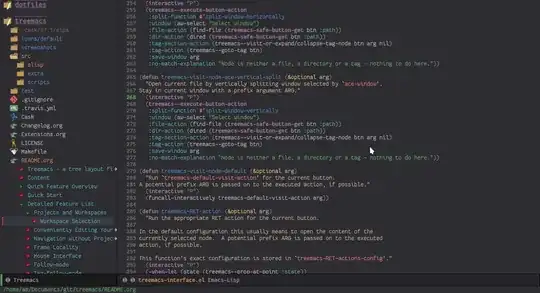

Image of treemacs from Github project

The colours show git status. For files White up to date, mauve changed, blue not in git. If a file is expanded e.g. README.org then these are the items provided by menu.

mmmmmm
  • 503
  • 1
  • 4
  • 19
