Is there an online simulator that would allow me to step through, debug, or simulate the execution of a Bitcoin script?

Geremia
  • 4,626
  • 5
  • 38
  • 75

10 Answers10

10

Highly recommend btcdeb by kallewoof. Among other things, you can step through scripts including verify signatures. It is written in c++ and compiles using autotools.

btcdeb

Bitcoin Script debugging utilities.

This is a set of tools used to debug or construct scripts for use in Bitcoin.

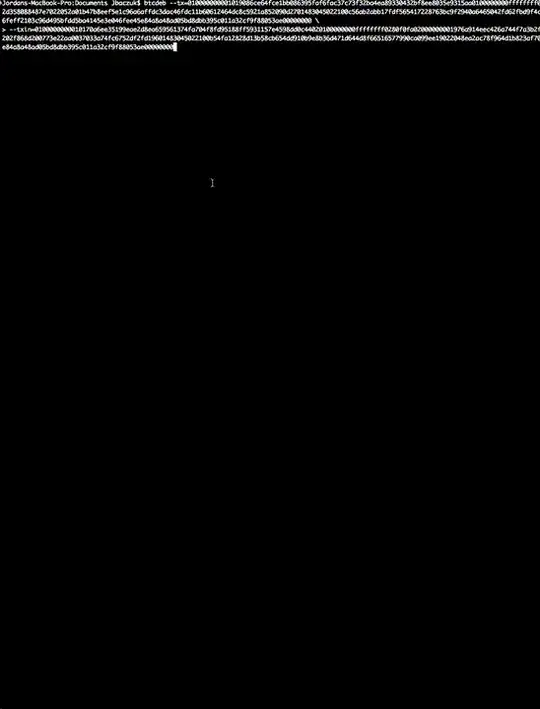

enter image description here

btcdeb> help
step     Execute one instruction and iterate in the script.
rewind   Go back in time one instruction.
stack    Print stack content.
altstack Print altstack content.
vfexec   Print vfexec content.
exec     Execute command.
tf       Transform a value using a given function.
print    Print script.
help     Show help information.
JBaczuk
  • 7,388
  • 1
  • 13
  • 34
5

I've been looking for a tool to experiment with bitcoin script for a while now, and I finally finished developing one myself.

BitAuth IDE is an open source project for designing advanced scripts for bitcoin and bitcoin-like cryptocurrencies. It’s both a learning sandbox and a tool for designing new kinds of wallets.

It includes a live-updating, interactive, line-by-line debugger, which visualizes that state of the stack over the entire execution of the program. There's also an entity and variable system for automatically generating private keys, public keys, and correct signatures across locking and unlocking scripts.

See here for a more detailed tour and a video walkthrough.

You can use the online demo of BitAuth IDE.

And the source is on GitHub.

I've also assembled a much longer Bitcoin Script Reading List, which you might find useful. It includes links to several more related tools and script testing environments.

Jason Dreyzehner
  • 837
  • 1
  • 7
  • 12
4

I know of these two:

The first one in particular I have found to be very useful.

RedGrittyBrick
  • 26,841
  • 3
  • 25
  • 51
morsecoder
  • 14,168
  • 2
  • 42
  • 94
3

have a look at BitcoinIDE (on github.io, working as of Apr 2018)

p,s:

as @Samarth Hattangady mentioned, the source code can be found at this repo if you want to run it locally.

Ohad Cohen
  • 139
  • 1
2

The github repository for the first link posted by StephenM347 can be found here

If you want to run it locally, clone the repo and then,

  1. cd into /path/to/bitcoinIDE/build

  2. Launch a server from here. This will launch a server on port 8000.

    python -m SimpleHTTPServer 8000

  3. From the browser, visit localhost:8000, and select the file editor.html

Samarth Hattangady
  • 248
  • 4
  • 9
  • 1
    On playing with this a lot, there seem to be some bugs. I was trying to solve a pay to pubkey hash script, and it didn't seem able to load larger items onto the stack (the sig and pubkey, and they seemed to just get rounded off instead) and thus the OP_HASH160 function didn't give the desired results. – Samarth Hattangady Sep 30 '17 at 10:31
2

I have a tool at http://www.bowmain.co.uk/BSV/ which may be use. Let me know what you think as I can make changes to it.

Ned Kelly
  • 29
  • 1
1

There is a "Script Playground": http://www.crmarsh.com/script-playground/

Igor Barinov
  • 546
  • 1
  • 4
  • 17
0

Online script IDE for Bitcoin and Liquid: https://scriptwiz.app/

Burak
  • 186
  • 6
  • Hi Burak, we're looking for long answers that explain why they're right. Link-only answers can quickly become obsolete when the page they link to stops serving the content, for example when it moves elsewhere or changes their internal structure. If this link does provide a tool that satisfies Geremia's request, please add more information to substantiate this. – Murch Sep 15 '21 at 11:23
0

Besides the Bitcoin Script editor you'll probably need an ECDSA generator.

Here's a simple online tool to create priv/pub key-pairs and sign with them using the Bitcoin Curve (secp256k1) https://kjur.github.io/jsrsasign/sample/sample-ecdsa.html

Tim Menapace
  • 146
  • 1
0

I used the following ones just today:

schmijos
  • 131
  • 4
