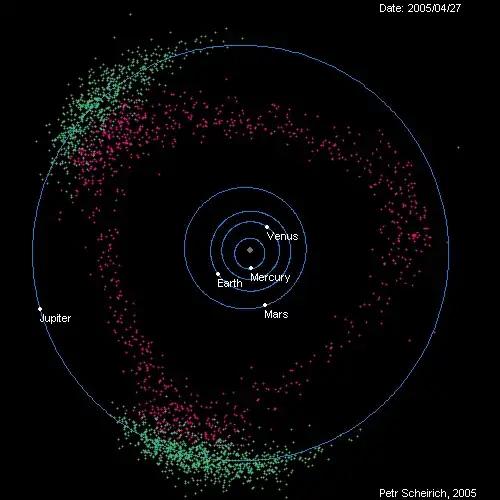

So, in this question, the user JollyJoker posted this image depicting the orbits of the asteroids in the asteroid field in the comments:

[https://i.gifer.com/4EfK.gif

In this image, you can see that while the individual asteroids follow elliptical orbits, the asteroid belt as a whole is a giant triangle with the Jovian Trojans at two corners, and a third corner directly opposite Jupiter, and the whole triangle orbits in sync with Jupiter.

Is this image accurate? Is the Asteroid Belt actually a giant triangle, rather than the loose circle it is often depicted as? If so, why is this the case?

nick012000
  • 761
  • 5
  • 8
  • 4
    Scheirich has more visualizations of the inner solar system here. The main belt is shown in three shades of red. – Mike G Feb 12 '20 at 14:26
  • 5
    FYI that image host is considered "adult content" by some corporate blockers. – htmlcoderexe Feb 13 '20 at 09:52
  • 3
    You point out in the question that the individual red objects each have an elliptical orbit but the collection looks like a triangle that points away from Jupiter. A similar animation that shows more clearly that the individual objects have elliptical, not triangular orbits is here: http://sajri.astronomy.cz/asteroidgroups/hildaorb.gif – Eric Lippert Feb 13 '20 at 21:14

1 Answers1

75

It's not. The image doesn't show the main asteroid belt. It shows the Jovian Trojans (in green) , and the Hilda Asteroids (in red).

The Hildas are a dynamical group of a few thousand known asteroids in elliptical orbits that are locked in a 3:2 orbital resonance with Jupiter, and reach aphelion coinciding with the regions near Sun-Jupiter Lagrange points L4, L3, and L5 in succession.

Animation showing Hildas with 3 indicated orbits, Petr Scheirich, 2005, 2018

"Animation showing Hildas with 3 indicated orbits" from "Asteroid (and Comet) Groups", Petr Scheirich, Retrieved 2020/02/14.

In accordance with Kepler's Second Law, objects in elliptical orbits move slower near aphelion than perihelion, and as a result, when you just look at the Hildas, they bunch up near the Lagrange points, and the pattern they appear to show at any one time resembles a triangle.

A more complete view of all the Asteroids inside of Jupiter looks like this.

notovny
  • 4,788
  • 1
  • 26
  • 30
  • 3
    https://www.youtube.com/watch?v=yt1qPCiOq-8 – uhoh Feb 12 '20 at 14:15
  • 5
    Not really coinciding with the Lagrange points, but approaching them – not because they are Lagrange points, but because those are the phases where an orbit with that period, with periapsis under Jupiter, must have its apoapsis. – Anton Sherwood Feb 13 '20 at 07:10
  • 1
    This video is both enlightning in showing where asteroids are, and also very mesmerizing to watch (it shows atseroids both orbiting and being discovered through the years) – Emil Bode Feb 13 '20 at 23:10
  • 2
    @Bilkokuya I've updated the answer with an image illustrating the elliptical orbits, and added some language about how they bunch up into the triangle. – notovny Feb 14 '20 at 12:39
