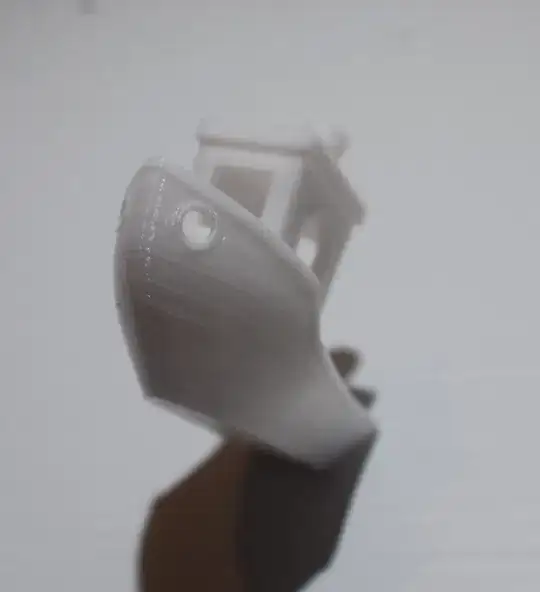

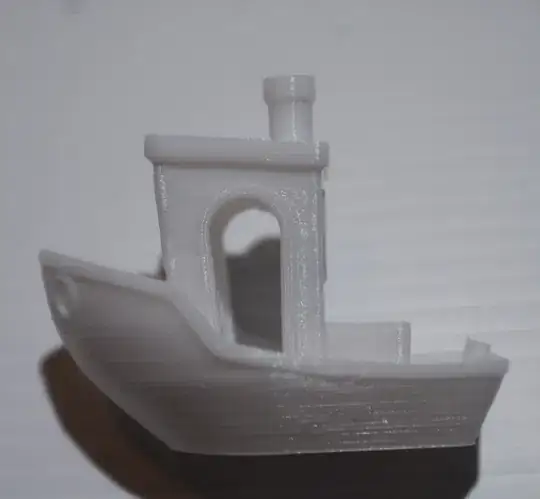

The printer I am using is an Artillery Sidewinder X1. In the photos attached you can see that I am having a lot of inconsistency between layers. The problem has never gone away and I always thought it was Z wobble but now I'm not so sure it is because we have tightened everything up, making sure everything is stable and tight. Is this Z wobble or is it something else. Could it be the filament? Does it have anything to do with the slicer settings?

3Dbenchy

enter image description here

0scar
  • 35,554
  • 12
  • 65
  • 151
Artichoke
  • 187
  • 2
  • 14
  • 2
    that marks are due heating problem vs quality filament vs speed printing. I had the same few years ago. – Fernando Baltazar Dec 09 '20 at 01:17
  • Thanks for putting me on the right track. I will look into those three things and post an answer if I fix it. – Artichoke Dec 09 '20 at 19:35
  • For me this also look like overextrusion and heat- notice the drops in the middle of boardside's lower part. Also, corners (booth, bow) seems emphasized - and if it's not filament (too much + too hot = pressure) then maybe too little jerk? – octopus8 Feb 06 '21 at 23:59

1 Answers1

2

No, this is not Z-wobble, Z-wobble is usually characterized by a repetitive distortion, from the supplied images this repetitive pattern is not observed. A Z-wobble pattern is typically caused by the lead screws, or the Z drive where carriage follows the X/Y motion of the lead screw nut.

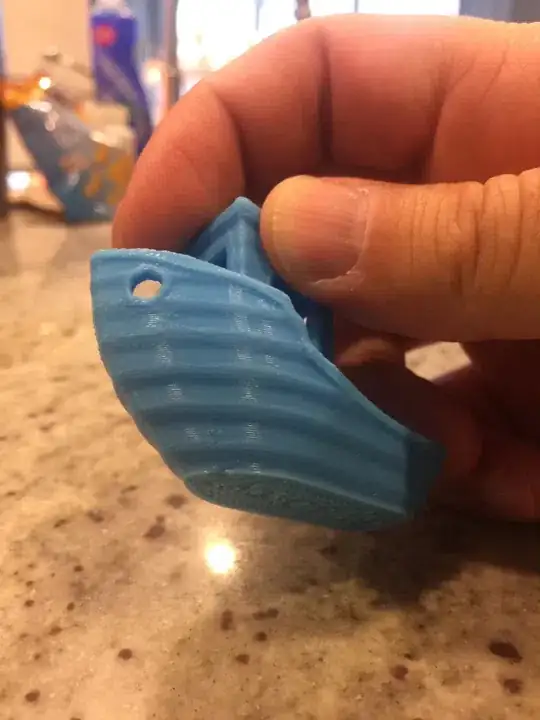

A typical image of Z-wobble on a Benchy would look like:

enter image description here

Your print doesn't look that bad for a low-end 3D printer.
